NARROW MERCURY HEADERS





540311   454 CHEVY  2" MERCURY HEADER (FRESH WATER)33" OVERALL WIDTH

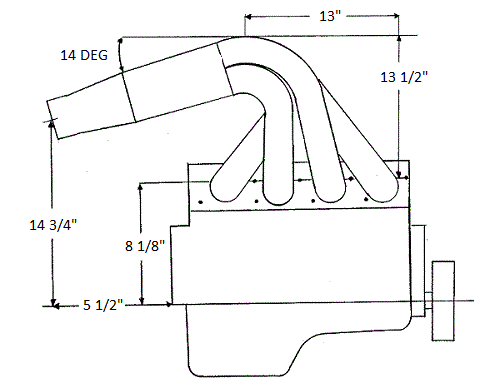

Our 540311 Mercury fresh water header is basically the same as our 540304 Mercury fresh water header except for the overall width, which is 33". Designed with a narrow overall width for tight motor box configurations or for twin engines applications. A short or angled valve cover must be used. This header must be removed to adjust valves.  This header incorporates a 2" primary tube (1 7/8" I.D.)  The 2" primary tube header has been Dyno tested with our 632 cubic inch Chevy test engine with outstanding results.  For more info click here.  The standard collector length is 8" and points down at approx. 14 degrees. This Header runs aft approximately 12" further than the stock manifold so it is important to measure the boat.  The header will be approximately 5" from touching the exhaust tip on the starboard side and 8" on the port side.   Keep in mind, that if the  exhaust tips are below the water line, the header can literally pull water up from outside the boat.

Camshaft selection is very important to guard against reversion.  Lightning has many camshaft and lifter options from mild to wild.  We also have dry tail pipe extensions that can eliminate reversion completely.

The standard Header comes with a black powder coat finish; optional colors available. The headers come complete with water supply manifold, gaskets, bolts, pet cocks, water feed hose and clamps.

 SCROLL DOWN FOR MORE PICTURES





 PRICE $ 2490.00

HEADER OPTIONS

HOW TO MEASURE FOR HEADERS

CAMSHAFTS DESIGNED FOR WET EXHAUST









TYPICAL VALVE COVER CLEARANCE
