INSTALLATION HARDWARE





INSTALLATION HARDWARE

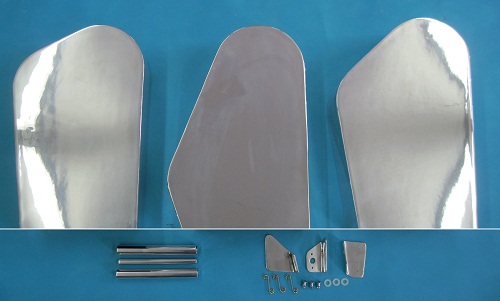

BLOWER BELT COVERS

10250 BLOWER BELT COVER




Blower belt covers are fabricated from 1/8" thick 5052-H32 aluminum and highly polished.  They are designed as a cover, NOT A GUARD.  They will keep towels, and
other common boating items from getting into the belt.  THEY WILL NOT KEEP A SHREDDING BLOWER BELT IN A CONFINED SPACE.
There are several different styles.  Basically, the idler position and having or not having an intercooler are the differences.
Also, there are two different mounting styles.  All thread and spacers or dzus tab style.
Covers are 4 1/2" deep and usually allow 1" of clearance around the belt and extend 2" below the water inlet plates on the block of BB Chevy.  The covers do not have any holes drilled in them and are field mounted.
Click here for drawings of stocked covers . Or, they can be custom made to your specifications.


10250/10254  BLOWER BELT COVER                            $425.00
10251 ADD FOR DZUS STYLE MOUNTING                        $25.00
Back to Top

10625 DRIVESHAFT COVER




Driveshaft cover is fabricated from 6061 T6 aluminum and highly polished.  They are 7" in overall length but can be made any length.


10625 DRIVESHAFT COVER                                         $185.00
10626 ADD PER INCH (after 7")                                    $10.00
Back to Top

10100 454-350 CHEVY FLYWHEEL COVER




454-350 Chevy flywheel cover is fabricated from aircraft quality aluminum and highly polished.  The flywheel covers will accept our driveshaft cover (10625).  They are light weight and will not support engine weight.  If driveshaft cover is not used, bolts must be installed where cover mounts to secure backing plates.  The flywheel cover bolt pattern is the same as the 350 or 454 Chevy engine block.


10100 454-350 CHEVY FLYWHEEL COVER                       $290.00
Back to Top

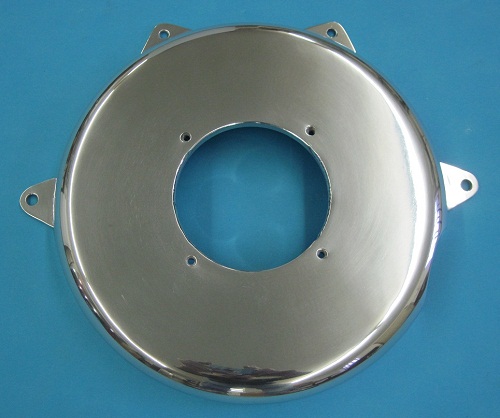

10101 460 FORD FLYWHEEL COVER




460 Ford flywheel cover is fabricated from aircraft quality aluminum and highly polished.  The flywheel covers will accept our driveshaft cover (10625).  They are light weight and will not support engine weight.  If driveshaft cover is not used, bolts must be installed where cover mounts to secure backing plates.  The flywheel cover mounts by using the bottom two engine block bolts and the top mounting tabs must be tapped into  a plate style back mount.


10101 460 FORD FLYWHEEL COVER                       $290.00
Back to Top

10010 454 CHEVY FRONT V-BOTTOM MOUNT




454 Chevy front V-bottom mount is fabricated from 3/8" 6061 T6 aluminum and highly polished. A window is cut into the left side of the mount for mechanical fuel pump.  Port and starboard alternator provisions are available.  Note that water injected headers will drip on port mounted alternators.  Mount is 26" wide and 3 3/4" deep from crankshaft centerline to the bottom of mount.  Together with the rear V-bottom mount it will put the engine at a 4 degree angle.


10010 CHEVY FRONT V-BOTTOM MOUNT                        $230.00
Back to Top

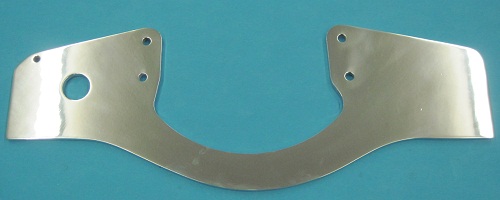

10011 454 CHEVY FRONT TUNNEL BOTTOM MOUNT




454 Chevy front Tunnel bottom mount is fabricated from 3/8" 6061 T6 aluminum and highly polished. A hole is cut into the left side of the mount for a mechanical fuel pump.  The mount must be spaced forward approximately 1" to allow clearance for the mechanical fuel pump.  Starboard side alternator provisions are provided.  Mount is 26" wide and 2 1/2"" deep from crankshaft centerline to the bottom of mount. Together with the rear Tunnel bottom mount, it will put the engine at a 4 degree angle.


10011 CHEVY FRONT TUNNEL BOTTOM MOUNT               $230.00
Back to Top

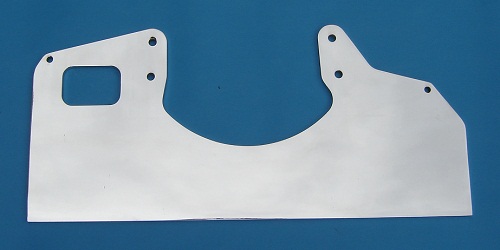

10012 454 CHEVY FRONT FLAT BOTTOM MOUNT




454 Chevy front Flat bottom mount is fabricated from 3/8" 6061 T6 aluminum and highly polished.  Port and Starboard side alternator provisions are provided.  Mount is 26" wide and 8" deep from crankshaft centerline to the bottom of mount.


10012 CHEVY FRONT FLAT BOTTOM MOUNT               $310.00
Back to Top

10040 454 CHEVY REAR V-BOTTOM MOUNT




454 Chevy rear V-bottom mount is fabricated from 3/8" 6061 T6 aluminum and highly polished.  The mount is 26" wide and 2 3/8" deep from the centerline of the crankshaft to the bottom of the mount.  Together with the front V-bottom mount it will put the engine at a 4 degree angle.


10040 CHEVY REAR MOUNT                                        $240.00
Back to Top

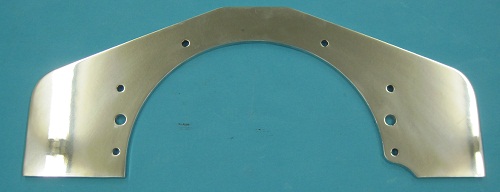

10041 454 CHEVY REAR TUNNEL BOTTOM MOUNT




454 Chevy rear Tunnel bottom mount is fabricated from 3/8" 6061 T6 aluminum and highly polished.  The mount is 26" wide and 1 1/8" deep from the centerline of the crankshaft to the bottom of the mount.  Together with the front Tunnel bottom mount, it will put the engine at a 4 degree angle.


10040 CHEVY REAR MOUNT                                        $240.00
Back to Top

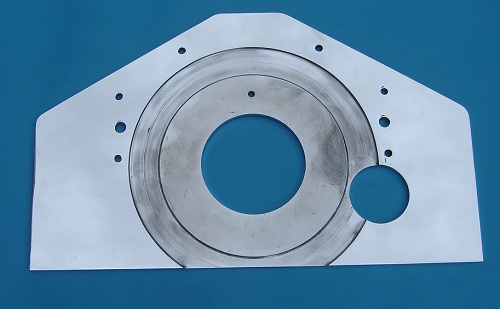

10043 454 CHEVY REAR FLAT BOTTOM MOUNT




454 Chevy rear Flat bottom mount is fabricated from 3/8" 6061 T6 aluminum and highly polished.  Mount is 26" wide and 6" deep from crankshaft centerline to the bottom of mount.  The rear mount  must be placed on engine block before flywheel.  The back side of the mount is clearanced for flywheel interference.


10043 CHEVY REAR FLAT BOTTOM MOUNT               $365.00
Back to Top

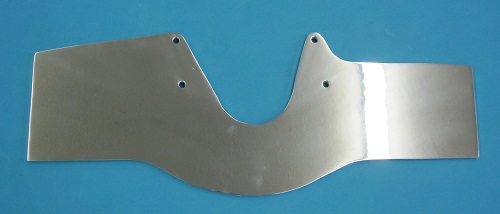

10015 460 FORD FRONT V-BOTTOM MOUNT




460 Ford front V-bottom mount is fabricated from 3/8" 6061 T6 aluminum and highly polished.  Port side alternator provisions are provided.  Mount is 26" wide and 3 3/4" deep from crankshaft centerline to the bottom of mount.  Together with the rear V-bottom mount, it will put the engine at a 4 degree angle.


10015 460 FORD FRONT V-BOTTOM MOUNT                     $240.00
Back to Top

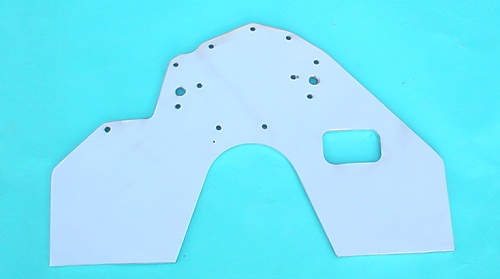

10016 460 FORD FRONT V-BOTTOM MOUNT




460 Ford front V-bottom mount is fabricated from 3/8" 6061 T6 aluminum and highly polished. The front mount replaces the water pump cover and has 3/8" NPT threads for incoming water supply.  A window is cut into the right side of the mount for mechanical fuel pump.  Port side alternator provisions are provided.    Mount is 26" wide and 3 3/4" deep from crankshaft centerline to the bottom of mount.  Together with the rear V-bottom mount, it will put the engine at a 4 degree angle.


10016 FORD FRONT V-BOTTOM MOUNT                        $375.00
Back to Top

10045 460 FORD REAR V-BOTTOM MOUNT




460 Ford rear V-bottom mount is fabricated from 3/8" 6061 T6 aluminum and highly polished.  The mount is 26" wide and 2 3/8" deep from the centerline of the crankshaft to the bottom of the mount.  Together with the front V-bottom mount, it will put the engine at a 4 degree angle.


10045  460 FORD V-BOTTOM REAR MOUNT                    $380.00
Back to Top

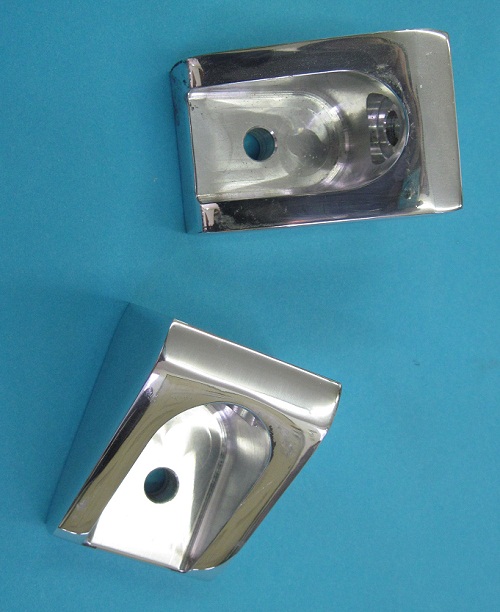

10161 MOTOR MOUNTING BLOCKS




Our motor mounting blocks are fabricated from 2" Square 6061 T-6 aluminum and highly polished.  They angled cut at 4 degrees to match most Jet boat installations.


10161 MOTOR MOUNTING BLOCKS                            $40.00
Back to Top

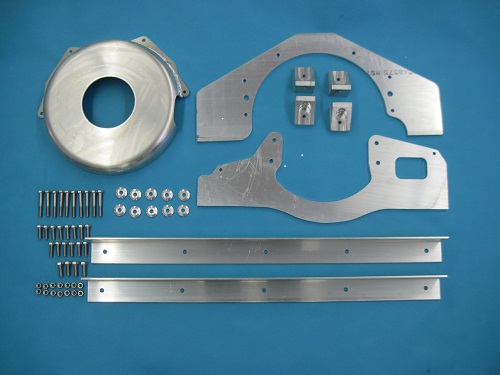

10000 BARE BONES CHEVY RAIL KIT




Lightning's 454 and 350 Bare Bones Chevy Rail Kit is perfect for the entry level boater that just wants to mount the motor in the boat.  Made with 6061 T-6 aluminum.  3/8" thick motor mounts are 26" wide and have previsions to mount the alternator on the left or right side of the motor, 5th generation spun flywheel cover, heavy duty 2 1/2" X 2 1/2" X 1/4" stringer rails, motor blocks machined from a single block of aluminum  Comes complete with fasteners.
Note: Flywheel cover does not have provisions to mount a driveshaft cover.
Top mount starter option is for a Delco 2 bolt style starter.




10000 CHEV RAIL KIT                                         $ 555.00

10007 ADD TOP MOUNT STARTER                      $ 175.00

200    ADD POWDER COATING                            $ 175.00

Back to Top

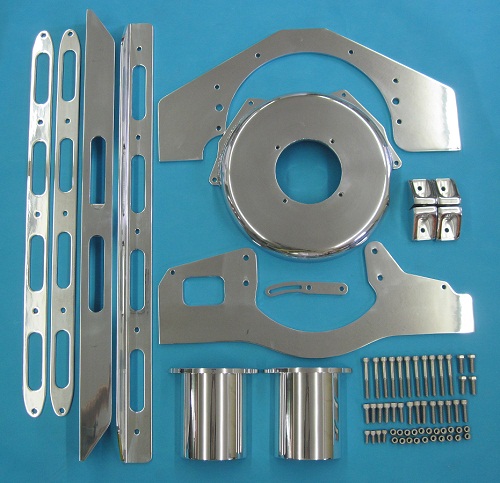

10001 CHEVY RAIL KIT




454 and 350 Chevy Rail Kit is made with 6061 T-6 aluminum and highly polished.  Comes complete with everything needed to mount engine.  Mounts can be made to fit stringer width and are usually shipped longer than needed for customer fitting.  Top mount starter option is for a Delco 2 bolt style starter.




10001 CHEV RAIL KIT                                        $1125.00

10007 ADD TOP MOUNT STARTER                      $ 175.00

200    ADD POWDER COATING                            $ 175.00

Back to Top

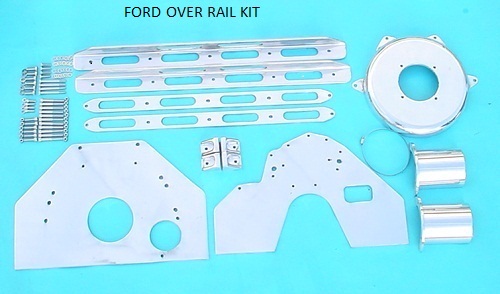

10003 FORD RAIL KIT




460 Ford Rail Kit is available in two configurations.  The front motor mount can extend under the dampener or the front motor can extend over the dampener and attach to the water pump housing location.  Made with 6061 T-6 aluminum and highly polished.  Comes complete with everything needed to mount engine.  Mounts can be made to fit stringer width and are usually shipped longer than needed for customer fitting.  Top mount starter option is for a Delco 2 bolt style starter.




10003 FORD 460 RAIL KIT (UNDER)                    $1195.00

10004 FORD 460 RAIL KIT (OVER)                      $1225.00

10007 ADD TOP MOUNT STARTER                      $ 175.00

200    ADD POWDER COATING                            $ 175.00

Back to Top

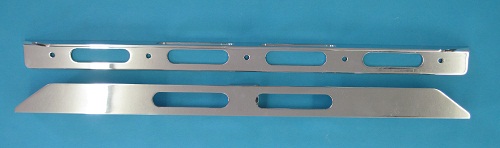

10122 SLOTTED STRINGER RAILS




Our Slotted Stringer Rails are made of 2 1/2" X 2 1/2" X 1/4"  6061 T6 aluminum and highly polished.  They are available in 38" and 48" lengths.

10122  SLOTTED STRINGER RAIL 38"                           $255.00 PR

10122  SLOTTED STRINGER RAIL 48"                           $295.00 PR
Back to Top

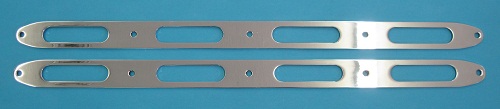

10145  SLOTTED STRINGER RAIL BACK-UPS




Our Slotted Stringer Rail Back-ups are made of 3/16" X 2" 6061 T6 aluminum and highly polished.


10145 SLOTTED  RAIL BACK-UPS  FOR 38"                      $165.00 PR

10146 SLOTTED  RAIL BACK-UPS  FOR 48"                      $185.00 PR

Back to Top

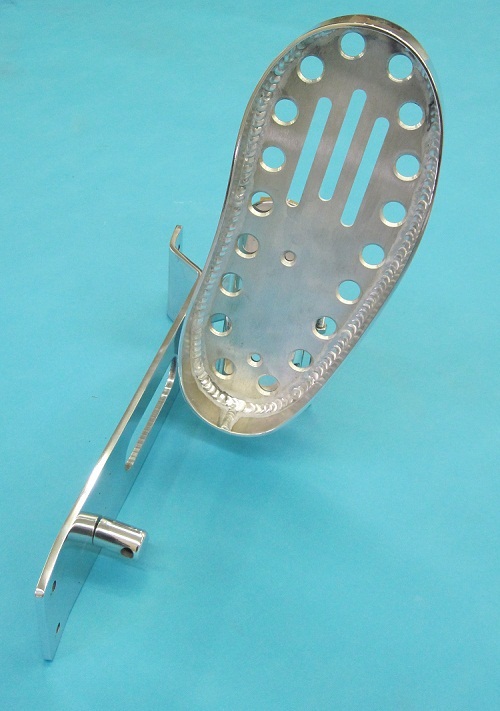

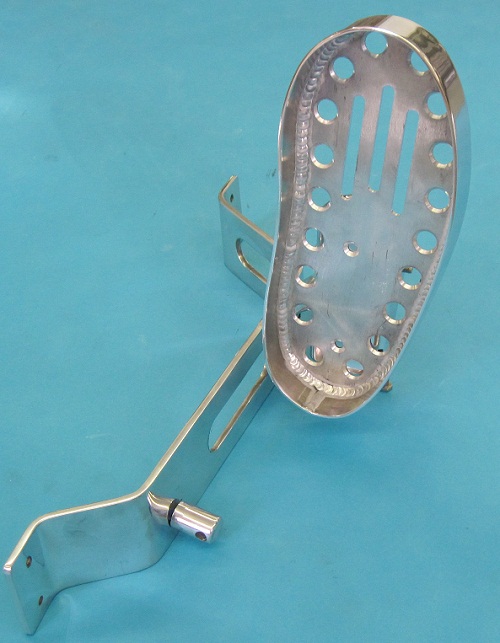

FOOT PEDAL ASSEMBLY STRINGER MOUNT








Stringer Mount Foot Pedal Assemblies are hand fabricated from 6061 T6 aluminum and highly polished.  Designed to either push or pull to accelerate. Note: Push pedal assemblies have the control cable exiting the rear of the assembly and pull pedal assemblies have the control cable exiting the front of the assembly and the control must routed 180 degrees. Three different standoff (distance from stringer to foot pedal centerline) locations are available  4 1/2",  7" and 8 1/2".


10277 PEDAL ASSY STRINGER (4 1/2")                         $355.00

10278 PEDAL ASSY STRINGER (7")                                $360.00

10279 PEDAL ASSY STRINGER (8 1/2")                          $370.00

Back to Top

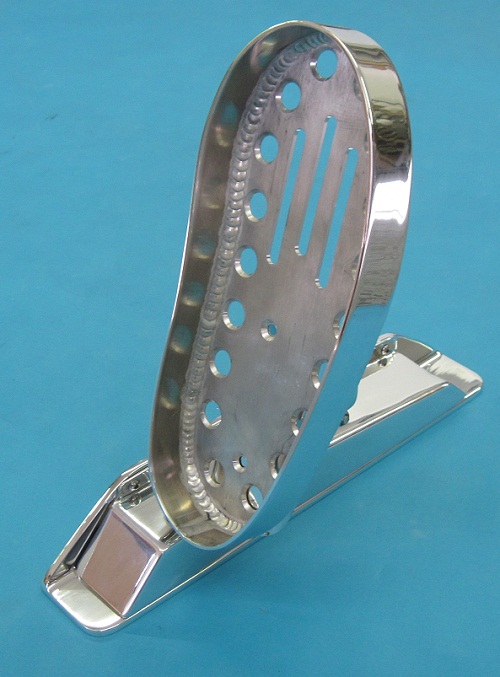

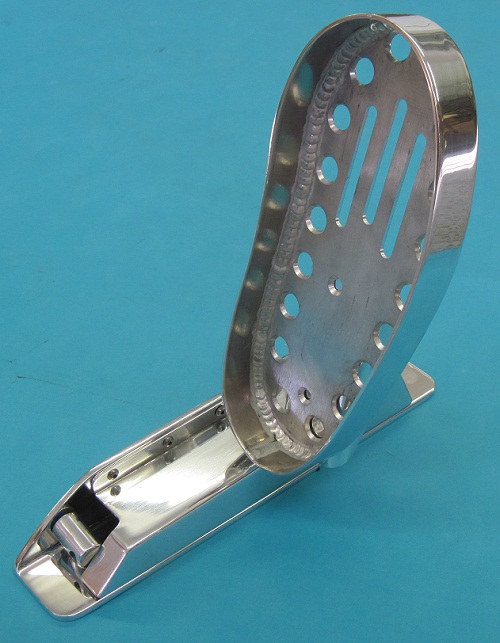

FOOT PEDAL ASSEMBLY FLOOR MOUNT






Floor Mount Foot Pedal Assemblies are hand fabricated from 6061 T6 aluminum and highly polished.  The top photo is the push assembly and the bottom photo is the pull assembly.  Note: Push pedal assemblies have the control cable exiting the rear of the assembly and pull pedal assemblies have the control cable exiting the front of the assembly and the control must routed 180 degrees.


10283 PEDAL ASSY FLOOR MOUNT (PUSH)                     $365.00

10284 PEDAL ASSY FLOOR MOUNT (PULL)                      $370.00

Back to Top

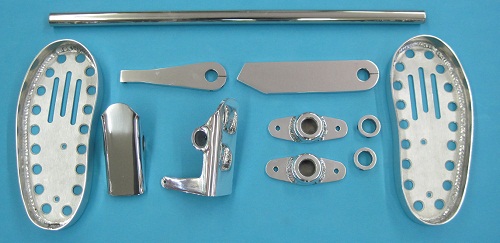

10285 DUAL PEDAL ASSEMBLY




Our Dual Pedal Assembly is fabricated from 6061 T6 aluminum and the cross bar is stainless steel.  All pieces are highly polished. Designed for center steering boats.  The right pedal is usually the throttle pedal with a pedal stop and the left pedal is a rest.  The pedals can be mount anywhere on the cross shaft.


10285 DUAL PEDAL ASSYEMLY                                       $450.00

Back to Top

10290/10291  FOOT PEDAL BLANK




Our Foot Pedal blanks are made of 6061 T-6 aluminum.  The inset and back side have a grain finish and the outside is highly polished.  They are light weight and if they are used in a heavy duty application (cavitation plate pedal) they must be mounted on top of a subplate.


10290 PEDAL BLANK (RIGHT)                                         $130.00

10291 PEDAL BLANK (LEFT)                                           $130.00

Back to Top
